Stefan W. Hell, Director at the Max Planck Institute for Biophysical Chemistry in Göttingen has been awarded this year’s Nobel Prize in Chemistry. His inventions in the field of high-resolution microscopy have already been translated into successful products and are used in biological and medical research.

With the invention of the STED (Stimulated Emission Depletion) microscopy experimentally realized by Hell in 1999, he has revolutionized light microscopy. Conventional light microscopes reach their resolution limit when two similar objects are closer than 200 nanometers (millionth of a millimetre) to each other because the diffraction of light blurs them to a single image feature. This limit discovered about 130 years ago by Ernst Abbe – and chiseled in stone in a memorial in Jena (Germany) – had been considered an insurmountable hurdle. The same limit by diffraction also applies to fluorescence microscopy which is frequently used in biology and medicine. For biologists and physicians, this meant a massive restriction – because for them, the observation of much smaller structures in living cells is decisive.

The 51-year-old physicist Stefan Hell was the first to radically overcome the resolution limit of light microscopes – with an entirely new concept. STED microscopy, invented and developed by him to application readiness, is the first focused light-microscopy method which is no longer fundamentally limited by diffraction. It allows an up to ten times greater detailed observation in living cells and makes structures visible that are much smaller than 200 nanometres. "Back then I intuitively felt that something has not been thought through thoroughly," Hell recalls.

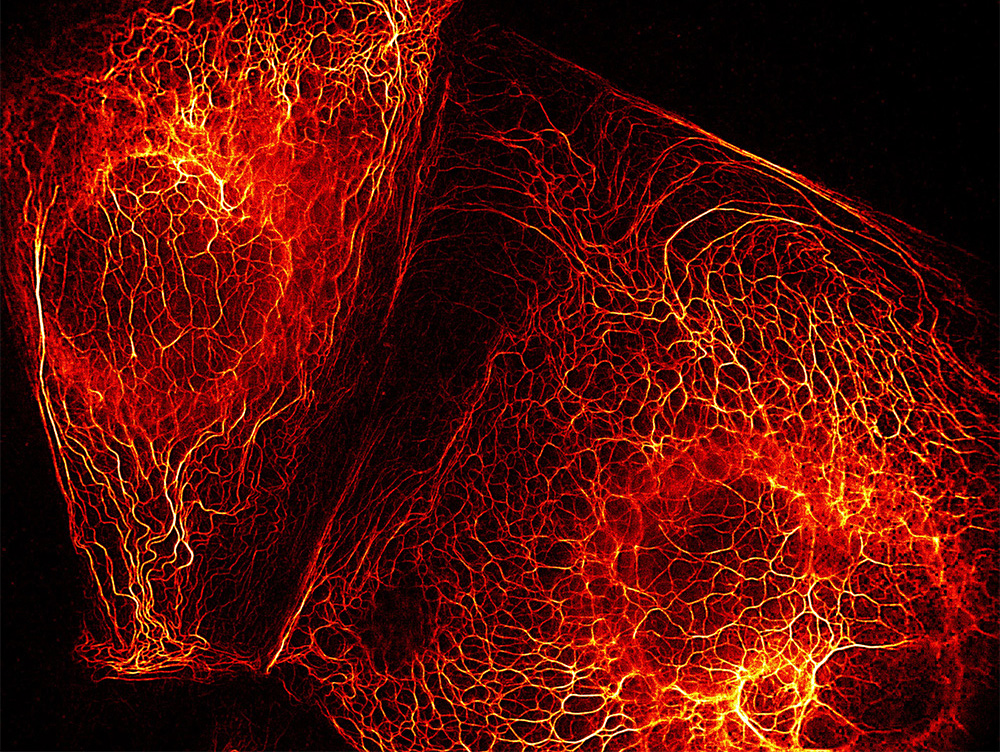

In order to overcome the phenomenon of light diffraction, he and his team applied a trick. The focal spot of the fluorescence excitation beam is accompanied by a doughnut-shaped "STED beam" that switches off fluorophores at the spot periphery by effectively confining them to the ground state. In contrast, molecules at the doughnut center can dwell in the fluorescence "on" state and fluoresce freely. The resolution is typically improved by up to ten times compared with conventional microscopes, meaning that labelled protein complexes with separation of only 20-50 nanometers can be discerned. As the brightness of the STED beam is increased, the spot in which molecules can fluoresce is further reduced in size. As a consequence, the resolution of the system can be increased, in principle, to molecular dimensions.

By developing special fast recording techniques for the STED microscopy, Hell’s team further succeeded in recording fast movements within living cells. They reduced the exposure time for single images in such a dramatic way that they could film in real-time the movements within living nerve cells with a resolution of 65 to 70 nanometers – a 3 to 4 times better resolution compared to conventional light microscopes.

With his outstanding work Stefan Hell has pushed open a door towards new insights into what happens on the molecular scale of life – a door which was believed for a long time to be non-existent. STED microscopy offers plenty of potential for research on disease or the development of drugs, Hell explains:

If one can directly observe how a drug affects the cell, the development time of new therapeutic agents could be reduced enormously.



Prof. Dr. Stefan W. Hell

Max Planck Innovation has been supporting Professor Hell and the MPI for Biophysical Chemistry for years with the marketing of technologies. The technology transfer organization has concluded numerous licensing agreements regarding techniques such as GSDIM, gSTED and RESOLFT for the development of high-resolution microscopes with companies such as Leica Microsystems. With the foundation of the spin-off companies Abberior and Abberior Instruments fluorescent dyes and devices for high-resolution microscopy are being developed and marketed to industry.

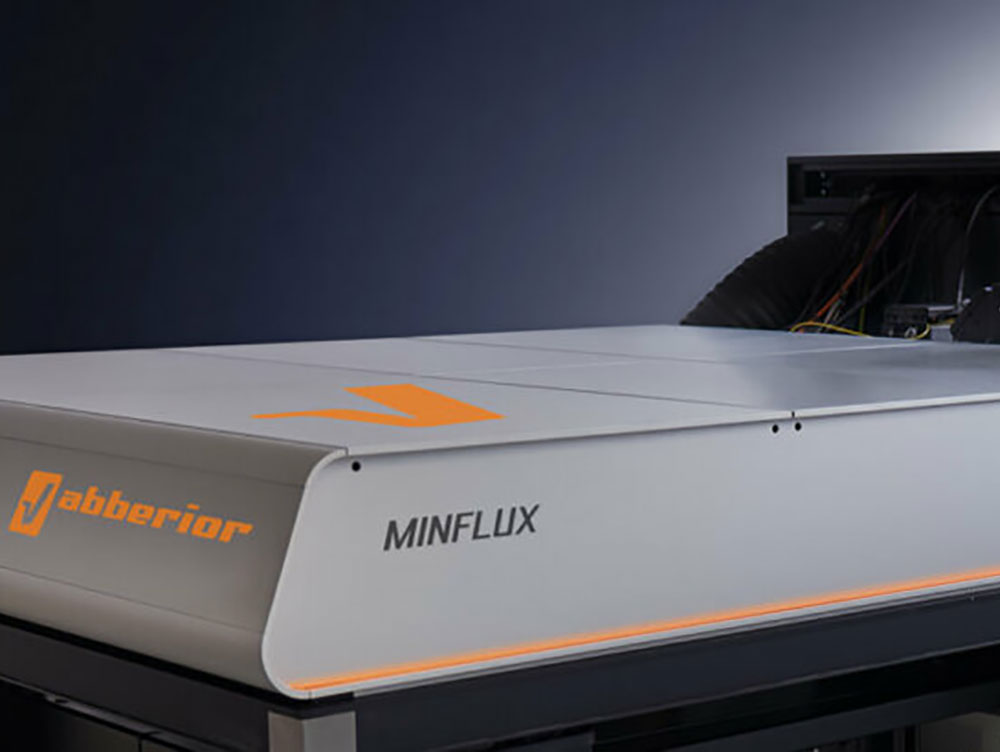

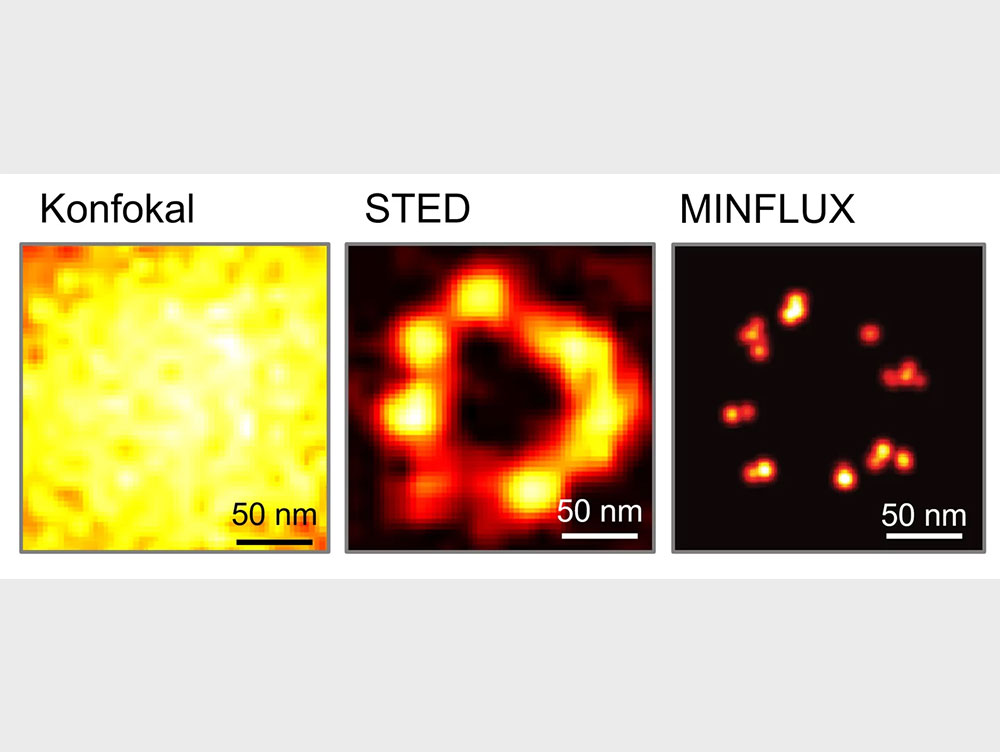

Abberior's latest product innovation is MINFLUX, a fluorescence microscope with the highest resolution in the world. Hundreds of times sharper than conventional light microscopes, it enables real-time observation of the cell interior at the molecular level. Numerous systems have already been sold since the market launch in 2020.
